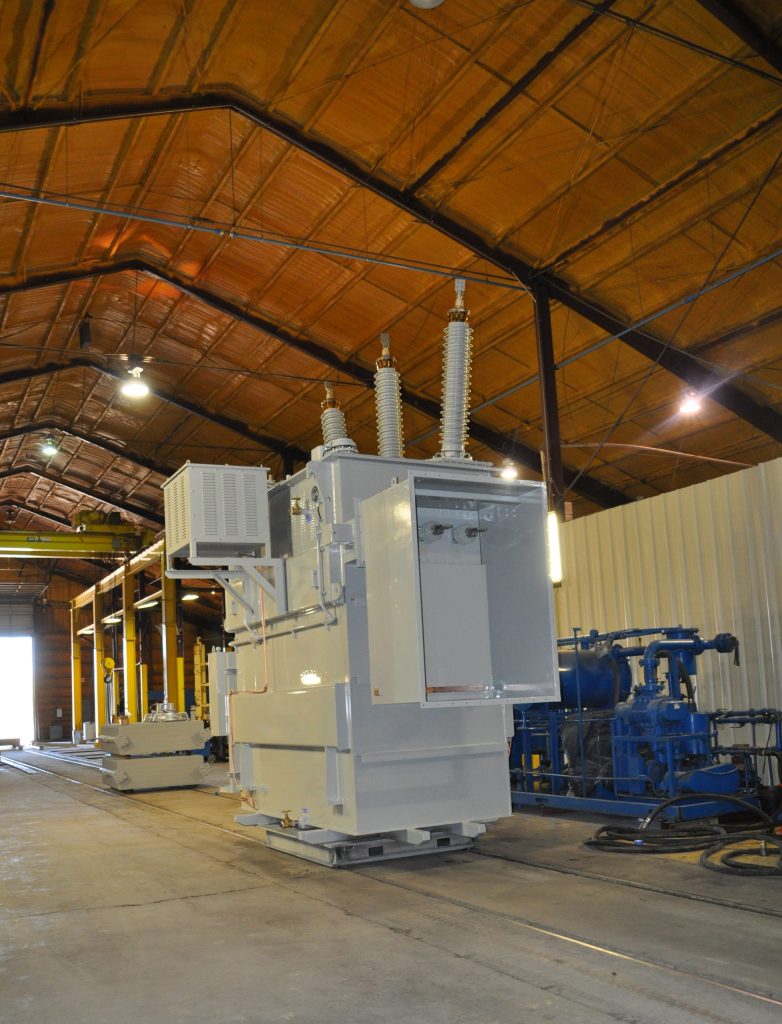

Complete In-Shop Transformer Services

Repair
Rewind
Recondition
Testing
Manufacturing
Modifications
Engineering Services

Complete Transformer Services

Repair

  • Single Phase and Three Phase Transformers
  • Dry Type Transformers
  • Voltage Regulators
  • Oil Switches
  • Mobile Substations
  • Reclosers
  • Padmounts
  • Sectionalizers
  • Capacitors
  • Power Transformers

Testing

  • DGA (dissolved gas analysis)
  • Dielectric oil tests
  • Oil moisture content tests or Karl Fischer
  • Power factor
  • Megger
  • DLRO
  • Turn ratio
  • Auxiliary devices (ie fans, pumps)
  • Doble testing
  • SFRA testing (sweep frequency response analysis)
  • Insulation resistance
  • Winding/conductor resistance
  • Oil filled bushing test
  • CT test

Clean Climate Controlled Winding Facility

Brandon and Clark’s winding are produced in a climate controlled, humidity stabilized winding facility. This 5,000 square foot facility is separated from the rest of the shop to prevent winding contamination. Our winding facility houses eight winding machines and has a five ton hoist to assist with safe coil handling. The winding facility also houses our state of the art coil up-ending process which allows us to provide our customers with the strictest coil handling procedures in the industry.

Quality Repair Materials

Our decision to use only high quality material enables us to help customers avoid unnecessary losses and maximize the life of their equipment. All Brandon and Clark transformer windings are produced from using copper conductor and nomex or dennison wrap insulation.

Copper windings offer advantages in transformer losses and mechanical strength which is particularly important for industrial applications where large motor starting loads are present.

Brandon and Clark has experienced staff of engineers who can convert your transformer’s windings from aluminum to copper.

FR3 Fluid

Since 2005, Brandon & Clark has offered their customers the option to fill & retro-fill their electrical equipment with an environmentally friendly and EPA approved fluid called FR3®. Envirotemp FR3® fluid is made from food grade seed oils and food grade performance enhancing additives, which makes it completely biodegradable. FR3® fluid can help to extend the life of your transformers insulation and improves the transformers fire resistancy, through higher flash and fire points.

Engineering

Brandon and Clark is a Licensed Engineering Firm with Professional Engineers on staff who can perform services that will help to ensure safety, design support and installation of electrical equipment.

Transformer Modifications

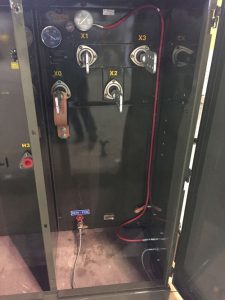

Remote Sampler Valve Kit

It well known in the industry that DGA (dissolved gas analysis) is among the most effective ways for detecting faults within a transformer.  Brandon and Clark now offers the safest, most convenient way of taking oil samples from your padmount transformer through its Remote Sampler Valve Kit.   This kit allows for oil samples to be taken in an environment that is safe with no risk of arc flash because the transformer doors are never opened.  The kit is located in an easy to access location allowing for samples to be taken without having to deenergize the unit.

As a part of your preventative maintenance program, Brandon and Clark will routinely take oil samples and send it to a third party laboratory for analyzing.  The results from the test will be stored and trended to make ensure that if something is out of the ordinary proactive measures can be taken.

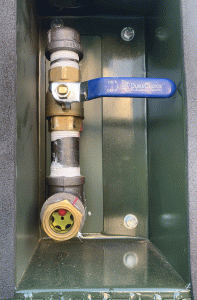

Oil Level Indication

After pulling oil samples for several years through a remote sampler valve outside the terminal chamber, have you ever wondered what your unit’s oil level is?

Brandon and Clark has developed a way for you to determine oil levels, easily and safely. And adding this feature can be done on-site during a scheduled outage!

Know, at any given time, your transformer’s oil level and top off as necessary without worrying about de-energizing or an arc flash incident.


Infrared (IR) Window Installation

An IR (Infrared) Window can be installed to allow for infrared scanning without coming into contact with hazardous conditions that you are exposed to when the panel doors are open. With the addition of this window, arc flash PPE may no longer be required.

Transformer Modifications

Remote Sampler Valve Kit

It well known in the industry that DGA (dissolved gas analysis) is among the most effective ways for detecting faults within a transformer.  Brandon and Clark now offers the safest, most convenient way of taking oil samples from your padmount transformer through its Remote Sampler Valve Kit.   This kit allows for oil samples to be taken in an environment that is safe with no risk of arc flash because the transformer doors are never opened.  The kit is located in an easy to access location allowing for samples to be taken without having to deenergize the unit.

As a part of your preventative maintenance program, Brandon and Clark will routinely take oil samples and send it to a third party laboratory for analyzing.  The results from the test will be stored and trended to make ensure that if something is out of the ordinary proactive measures can be taken.

Oil Level Indication

After pulling oil samples for several years through a remote sampler valve outside the terminal chamber, have you ever wondered what your unit’s oil level is?

Brandon and Clark has developed a way for you to determine oil levels, easily and safely. And adding this feature can be done on-site during a scheduled outage!

Know, at any given time, your transformer’s oil level and top off as necessary without worrying about de-energizing or an arc flash incident.


Infrared (IR) Window Installation

An IR (Infrared) Window can be installed to allow for infrared scanning without coming into contact with hazardous conditions that you are exposed to when the panel doors are open. With the addition of this window, arc flash PPE may no longer be required.
