We are your Complete Electrical Solutions Provider
Since 1950, you have counted on us for your electrical equipment repair and supply needs. Now to complete your electrical solution needs, Brandon & Clark Inc. offers engineering services. We can provide engineering support from design to installation and from electrical distribution systems to automation and controls. We are a licensed engineering firm with on staff licensed professional engineers.
Engineering Services Offered
Electrical and automation engineering
- Motion Amplification
Short circuit studies
Arc flash studies
SKM and ETAP software utilization
- Forensic failure analysis
Registered Professional Engineering Firm
- Texas PE Firm #12441
- New Mexico

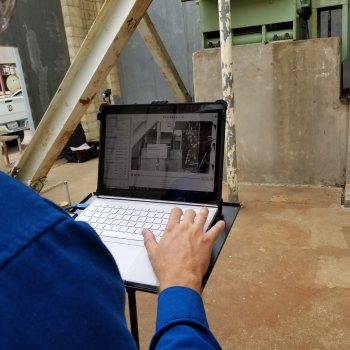

Motion amplification is a service that utilizes patented technology to measure deflection, displacement, movement and vibration of equipment and structures not visible to the human eye. Utilizing video camera technology in conjunction with a one-of-a-kind software and processing algorithms we are able to extract meaningful data that solves problems. This technology turns every pixel in the camera’s view into a sensor capable of measuring vibration or motion with unparalleled levels of accuracy.
With motion amplification, not only can you see a problem, you will often times also see the solution because you now can visualize the root cause.

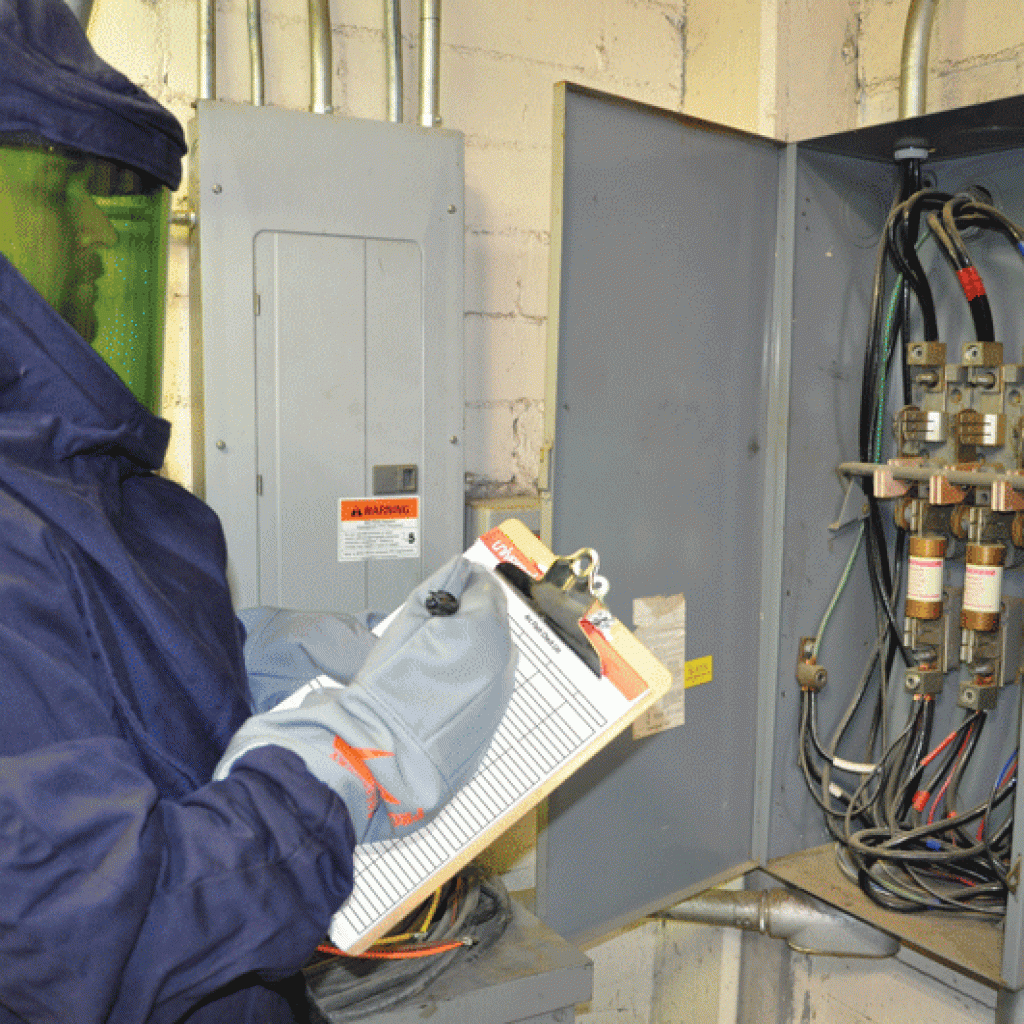

Arc Flash Studies
Arc flash events are avoidable when proper preventative measures are taken. One of these measures is to conduct an arc flash study.
This study will identify all pieces of equipment subject to arc flash and it’s hazard risk category. However, we don’t just stop at identification, we offer arc flash potential reduction solutions and clearly identify what essential PPE is required when working around the equipment.
Brandon and Clark’s arc flash study services include:
Collecting and recording all pertinent data of the electrical components rated for 50 volts or higher. This may include but not limited to:
- Electrical conductors
- Molded case circuit breakers
- Power circuit breakers
- Protective relay devices
- AC inductions motors
- Distribution equipment
Complete facility overview including an electrical one line drawing
Furnish and affix the arc flash labels for each applicable piece of equipment
All studies performed are in accordance with ANSI Std C37 and IEEE Std. 141-1993 (Red Book). Incident energy and arc flash boundaries will be computing to IEEE Std 1594-2002 and NFPA 70E.

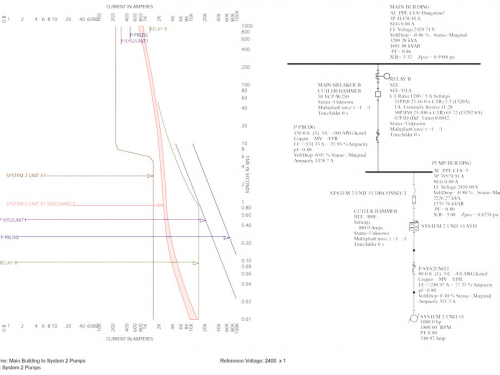

Proper selection of protective devices is key to protecting the equipment and reducing arc flash potential. A coordination study is preventative maintenance on a systems level that produces an action plan. Through our study, protective devices such as fuses and fuse sizing, breakers and it’s proper settings, relays, and other equipment are recommended along with its proper placement.
A coordination study can be performed on an existing system or from a conceptual drawing.

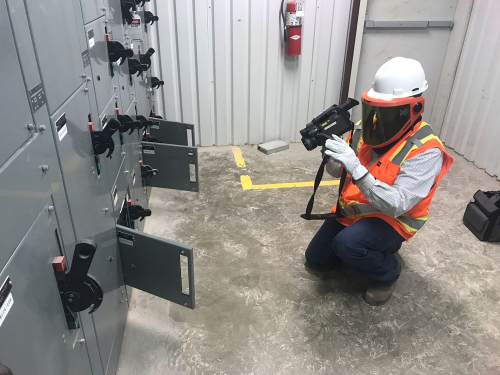

Our state of the art infrared camera can detect subtle temperature changes which can assist you in pinpointing individual points of failure or risk before they cause you costly, unscheduled down time.
- Early detection
- Better planning
- Compliments other preventative maintenance efforts
Thermal imaging can be used on:
- Electrical applications
- Mechanical applications
- Process applications
- Fire prevention
A great accompaniment to our engineering services is Brandon and Clark’s field service capabilities. When problematic areas are identified during an engineering study, Brandon and Clark is able to remedy that problem. We are staffed with Master and Journeyman electricians and factory trained and certified technicians to perform these, but not limited to, field services:
- Industrial wiring
- Ground testing
- Automation wiring
- Controls installation
- Equipment troubleshooting
- HMI implementation
- Laser alignment
- Vibration analysis
- Motor, transformer, air compressor, pump in-field testing and repairs
- Preventative maintenance services
