Low Power Factor is one of the leading causes of electrical system inefficiency.
Solution : BCI Power Factor Correction Capacitors
Proper application of BCI Power Factor Correction Capacitors can solve a variety of electrical system problems by correcting lagging power factor.
Lagging power factor problems are associated with a variety of inductive loads.
- Induction motors
- Transformers
- Inductive loading

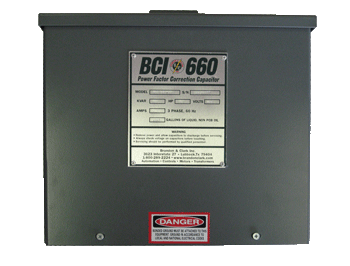

The BCI 660 Power Factor Correction Capacitor is enclosed in a NEMA 3R enclosure for installations requiring a weatherproof housing.
Each enclosure is pole mountable with conduit knockouts and a terminal block to simplify installation.
Product Benefits
- Avoid power factor penalties
- Improve system capacity
- Improve efficiency
- Minimize line losses
- Prevent voltage drops
- Decrease infrastructure costs
- Increased application flexibility and life expectancy
Product Information
HP | KVAR | Voltage |
---|---|---|
15 | 4 | 480 |
20 | 5 | 480 |
25 | 6 | 480 |
30 | 7 | 480 |
40 | 9 | 480 |
50 | 11 | 480 |
60 | 14 | 480 |
75 | 16 | 480 |
100 | 21 | 480 |
125 | 26 | 480 |
150 | 30 | 480 |
200 | 38 | 480 |
Electrical Specifications
Enclosure Specifications
Electrical Specifications
- KVAR Range: 4-38 KVAR
- HP Range: 15-200 hp
- Maximum Voltage 480v, 3-phase, 60 Hz
- Non-PCB oil filled capacitors
Enclosure Specifications
- NEMA 3 R Rating
- Pole Mount
- Conduit Knockouts: 3/4″ and 1 1/4″
