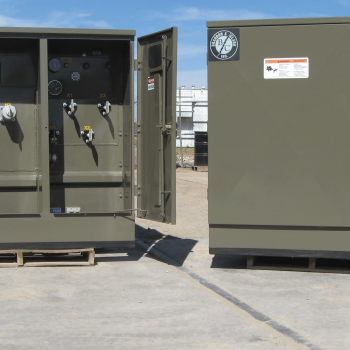

Padmount Transformer Sales, Service and Repair

Complete Padmount Transformer Services

  • Repair

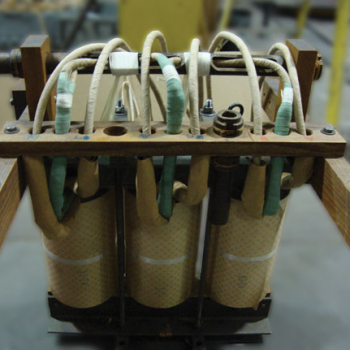

  • Recondition and rewind 35-kV class 200-kV BIL
  • Conversions: voltage, KVA, physical configuration
  • All copper windings
  • New units available
  • IEEE/ANSI testing and design standards
  • K-factor design
  • Custom manufacturing
  • Failure analysis
  • Station type
  • VPI technology
  • Recondition and rewind units receive new mineral oil or FR3 fluid
  • Covert live front radial feed to dead front radial or vise versa
  • Add bay-o-net fusing or load break switch
  • Drain valve relocation
  • Cooling fan additions

Conversion Capabilities

Brandon and Clark can perform redesigns and conversions to your padmount transformer including changes to :

  • Voltages
  • Internal accessories
  • External configurations
  • Conversions from live front to dead front or the addition of load break switches and bay-o-net fusing can be performed.
  • changing primary and secondary voltages
  • KVA
  • K-factor rating
  • Converting designs to a copper conductor material
  • Retro-fill with an environmentally friendly and EPA approved fluid called FR3®


Electrical tests include:

  • Transformer Turns Ratio (TTR)
  • Insulation resistance
  • Winding/conductor resistance test (DLRO)
  • Applied potential (hi-pot)
  • Induced potential (double induced)
  • Load, no-load test

Custom Manufacturing

Our custom padmount designs offer superior lead time along with the advantage of being a tailored-made solution to match your specifications. Custom manufacturing can save time and money ensuring that your Brandon and Clark manufactured unit is a direct drop in replacement preventing unnecessary modifications to your facility.

  • Brandon and Clark gives you the option to move the drain valve to the outside of the transformer tank. This change allows you the convenience of deenergizing the unit to take oil samples in a safer environment.
  • With a custom unit, Brandon and Clark can manufacture a unit faster than most manufactures can gather the material needed to build a new one.

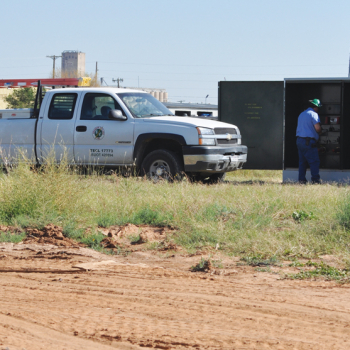

transformer field service

How Healthy is your Padmount?

Don't Guess, Get a Clear View.

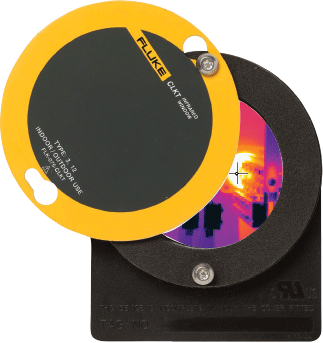

It well known in the industry that DGA (dissolved gas analysis) and thermal imaging is among the most effective ways for detecting faults within a transformer. Brandon and Clark offers the safest, most convenient way of analyzing the health of your padmount transformer through it’s IR Window Installation and Remote Oil Sampler Valve Kit.

This kit allows for oil samples to be taken in an environment that is safe with no risk of arc flash because the transformer doors are never opened.  The kit is located in an easy to access location allowing for samples to be taken without having to deenergize the unit.


The greatest benefit to installing a Remote Sampler Valve Kit is for its safety capabilities. The technician servicing the unit has no concern of entering into an arc flash hazardous condition. The panel doors to the transformer never have to be opened and samples can be taken while energized, meaning no loss of production time.

Another great feature of the kit is that there is no great risk to the environment or the property around the padmount.  Sampling is done cleanly and precisely so leaking or spilling oil is not a concern.

To get the most accurate picture of the transformer’s health measuring its oil during operation gives real time data of the oil’s temperature and moisture content within the unit. No more adjusting or second guessing the temperature changes while waiting for the unit to come off line.

The return on investment (ROI) is without a doubt another great benefit of installing a Remote Sampler Valve Kit. The ability to prevent failure, prevent loss of production, eliminate arc flash hazard all add up to outweighing the cost of the kit.  You simply cannot put a price on a life!


All of Brandon and Clark, Inc.’s Remote Sampler Valve Kits are constructed of heavy duty metal that will stand the test of time and the environment.  Other units on the market are made of fiberglass, which can degrade over time.  Brandon and Clark, Inc.’s Remote Sampler Valve Kits have nameplate information inside the box for easy identification of units.

Oil Sampling Recommendations

It is recommended that oil samples be taken on a yearly basis for a healthy transformer. As time goes on and if proper maintenance is not performed, samples may be required more frequently.  As a value-added service of Brandon and Clark, each time we perform an oil sample, recommendations of oil sampling frequency will be suggested and trending data will be collected.  Brandon and Clark is a trusted resource in an effort to keep your units running safely, efficiently and at tip-top health.


Brandon and Clark makes the install of its Remote Sampler Valve Kit simple and quick. The total installation time is approximately 1 ½ hours and can be done in the field or at our facility.

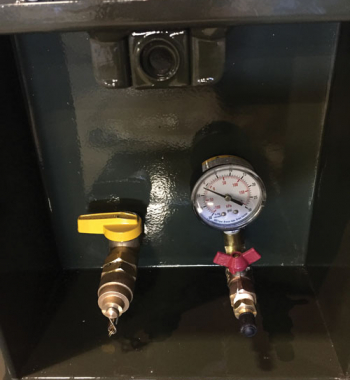

Nitrogen Purge Valve

The nitrogen purge valve plays an important role for oil sampling during the winter or when the ambient temperature is cold. Nitrogen creates a vacuum to help get the oil flowing.   All of Brandon and Clark’s kits include a nitrogen purge valve whereas some other products on the market requires it to be a separate purchase.

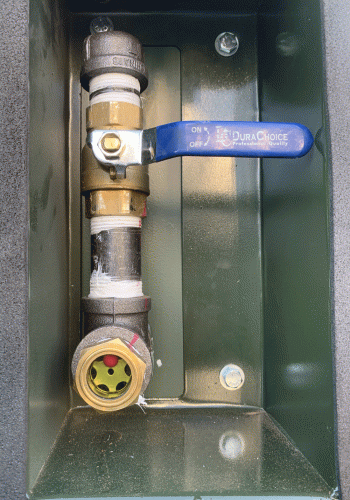

Oil Level Indication

After pulling oil samples for several years through a remote sampler valve outside the terminal chamber, have you ever wondered what your unit’s oil level is?
Brandon and Clark has developed a way for you to determine oil levels, easily and safely. And adding this feature can be done on-site during a scheduled outage!
Know, at any given time, your transformer’s oil level and top off as necessary without worrying about de-energizing or an arc flash incident.

Request Service or to Add Modifications to Protect Your Padmount Transformer
